This granulator is suitable for making plastic fragments into standard granules. Application range: PE PP BOPP HDPE LDPE LLDPE ABS EPE EPS XPS, stretch film, non-woven fabrics, woven bags, etc.

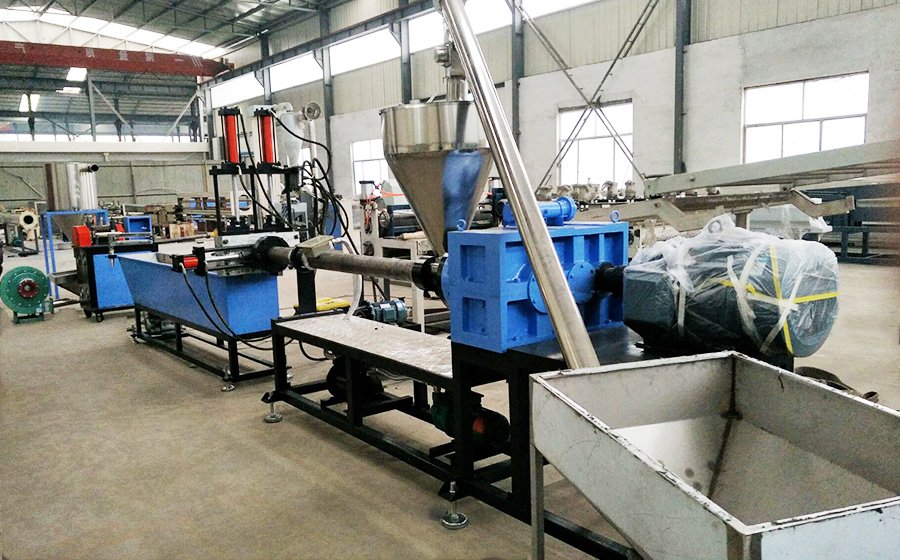

Brief Introduction of PP PE granules production line:
This granules machine is main used for making plastic scraps become into standard granules.
Availiable raw materials range:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS，strench film , non-woven fabric,woven bags.
Workflow chart:
Sprial loader---Force feeder---Vacuum exhaust single screw extruder---Hydraulic screen changer---Die head---Cutter---Dryer device---Air feed drying system---Storage---Product packing
Deatils of plastic granules making machine:
1. Sprial loader:Delivery of plastic scraps to the main machine
2. Force feeder: Delivery the raw material to the extruder at a constant speed,the feed speed can be adjusted
3. Extruder: Extruding raw material, and vacuum exhaust
4. High speed screen changer and die head: Filter impurities and make the production process more stable
5. Cutting device: cutting the granules
6. Water cooling tank: Cooling the granules
7. Dryer device: Remove water from particles
8. Vibration device: Remove particles of bad quality
9. Air feed drying system: Transport particles of good quality to the storage
10. Storage: Store particles for easy bagging
Main technical parameters:
Model | PNHS-85 | PNHS-100 | PNHS-130 | PNHS-160 | PNHS-180 |
Screw diameter | 85 | 100 | 130 | 160 | 180 |
L/D ratio | 25-36 | 25-36 | 25-33 | 25-33 | 25-33 |
Capacity(kg/h) | 120-180 | 200-250 | 400-500 | 450-700 | 500-1000 |
