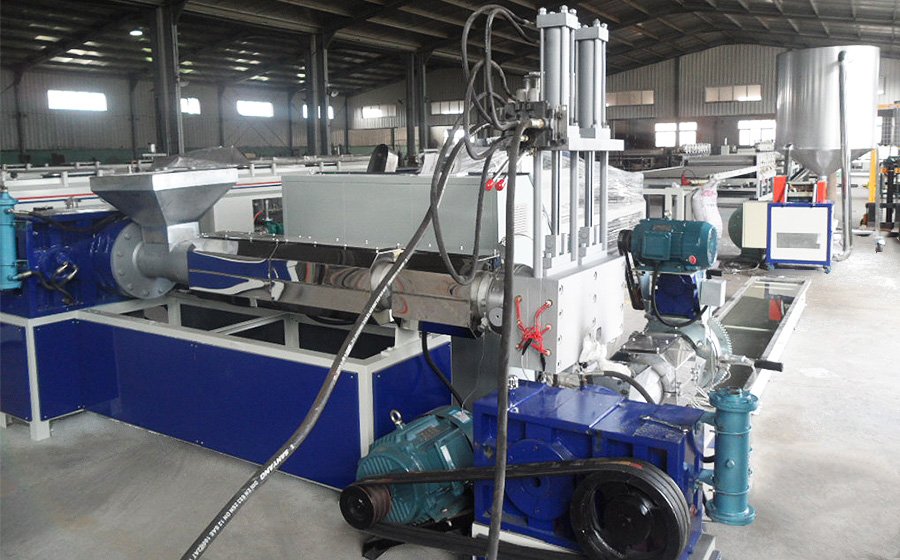

pp pe film bottle double stage granulating machine

Production specification of the PP PE Film Granules Machine:

1. This film granulating machine is suitable for the production of various materials. Such as PP,HDPE,LDPE film and clean bags. The film can be compressed in a pelletizer before being pelletized.

2. Two-stage granulation is particularly suitable for raw materials containing excessive moisture and impurities.

3. The first-stage extruder uses a vacuum exhaust screw, which can effectively remove water vapor and filter out impurities;The second-stage extruder generally uses an extruder with a shorter length-to-diameter ratio to further plasticize the feed and filter impurities to achieve a stable output.

Working flow chart:

Convey belt---Metal detector---Agglomerator---The first stage vacuum exhaust extruder---Hydraulic screen changer---The second stage extruder---Hydraulic screen changer---Die head---Water ring cutter---Dehydrator---Draught fan---Storge---Product packing

Detailed introduction of each equipment:

1. Conveyor belt: Conveying PP PE raw materials to the pellet machine

2. Granulator: Crushes and compresses the film, and forces the compressed film to the extruder, greatly increasing the output of the extruder

3. First stage extruder: extrude raw materials and vacuum exhaust

4. High-speed screen changer and die head: filter impurities and make the production process more stable

5. Second stage extruder: extruding raw materials

6. High-speed screen changer and die head: secondary filtration of impurities and more stable production process

7. Water Ring Pelletizing System: Pelletizing in Water

8. Water tank: cooling particles

9. Vibration device: Removes particles of substandard quality

10. Fan: transports qualified particles to the silo

11. Silo: Store pellets for easy bagging

Main technical parameters:
