This production line is mainly used to produce double PVC pipes. The pipes produced are mainly suitable for electrical wire threading pipes, etc. It adopts double-tube extrusion, has high production efficiency, and is safe and convenient to use.
Product description：
1. Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc.

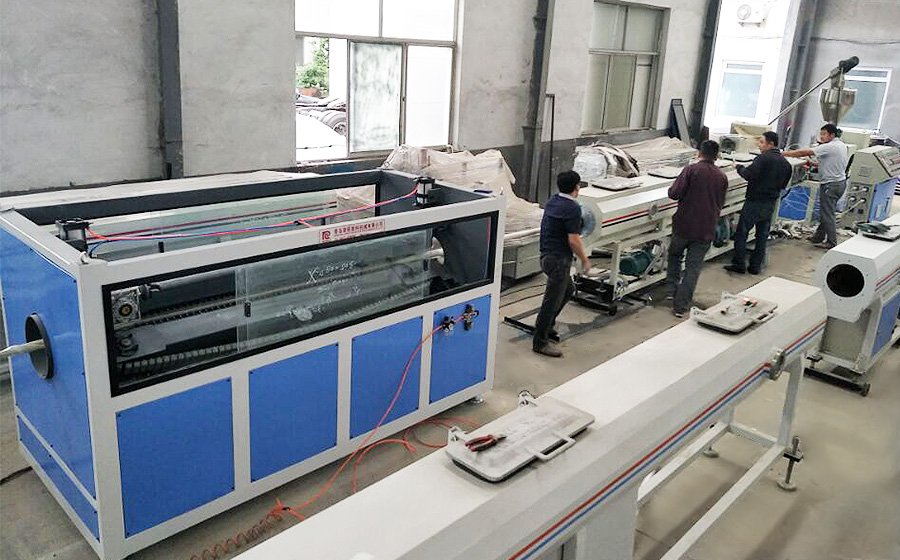

2. This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc.
3. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type.
4. It is addition attached with length counter and intensifying device. This line with reliable performance and high production efficiency.
Technical parameters:
Main extruder | SJSZ65/132 | SJSZ80X156 | SJSZ92x188 | SJSZ110/220 | |||||||||
Pipe diameter | 16-63 | 32-110 | 63-200 | 16-32 | 20-63 | 63-110 | 110-250 | 200-400 | 200-400 | 315-630 | 315-630 | 400-800 | |
Die head | Double outlet | Four outlet | Single outlet | Single outlet | Four outlet | Double outlet | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet |
Down-stream equipment | SGF63 | FGF63 | GF110 | GF200 | FGF63 | SGF63 | GF110 | GF250 | GF400 | GF400 | GF630 | GF630 | GF630 |
Total Power | 91 | 85 | 85 | 86.5 | 91 | 85 | 85 | 114 | 131 | 212 | 220 | 270 | 265 |
