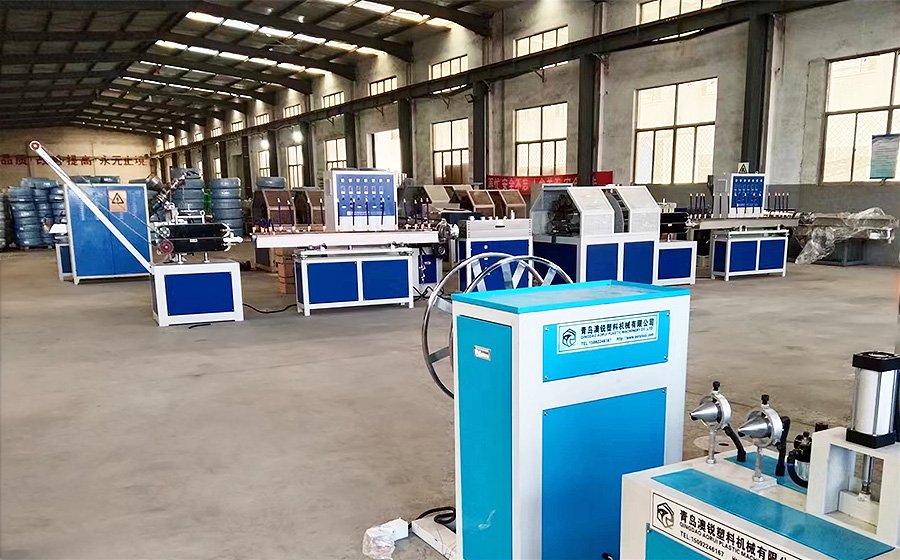

The PVC fiber reinforced hose production line is mainly composed of extruder, mold, spray water tank, traction machine, winding machine, coiling machine, etc. It has the characteristics of reasonable matching, unique structure, feasible performance, simple operation, convenient maintenance, and strong continuous production capacity.
PVC pipe production line description:
1. The pvc soft pipe production line is different with PVC pipe production line, the pvc pipes produced by the PVC fiber reinforced soft pipe production line also called gridding pipe and snakeskin pipe.
2. The pipe structure is three layer, the inner layer and outer layer is PVC soft material, the middle layer is polyester fiber reinforced mesh, it has good mechanical and chemical properties.
3. PVC fiber tube has a long service life. The product is light and soft, sun-proof, weather-resistant, wear-resistant, pressure-resistant, corrosion-resistant, and bending-resistant. Due to the high quality of PVC fiber tube, its wide use is guaranteed.
4. This unit can produce PVC reinforced hose with PET film wrapped in the middle by replacing the reinforced mesh weaving machine. This hose has a very beautiful appearance and is widely used in various fields such as water heaters.
Technological process:
Raw material---Extruder---Mold---Cooling water tank---Traction device---Winder---Extruder---Traction---Winder
Technical parameter:
Model | HM45 | HM55 | HM65 | HM75 |
Extruder(2 sets) | SJ45/30 | SJ55/30 | SJ65/30 | SJ75/30 |
Pipe diameter(mm) | 6-16 | 8-25 | 12-50 | 20-50 |
Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
Installed power(kw) | 35 | 42 | 50 | 65 |
