PE carbon pipe products are shaped in a special threaded shape, which can be bent freely to bypass obstacles and facilitate construction. The length of a single PE carbon pipe can be determined by the user to reduce the number of connections, which can make construction quick and maintenance convenient. Lightweight, easy to carry and reduce labor intensity; High strength The special threaded physical shape of the product makes it have high compressive strength and will not deform due to heavy pressure underground; Corrosion resistance The product has excellent acid, salt and alkali resistance and long service life. PE carbon pipe; Low construction cost.
Feature of PE carbon spiral reinforced pipe production line:
1. Equipped with a single screw extruder specifically for polyolefins,it has the characteristics of high-speed extrusion and high-speed processing.
2. Special separated mixing screw and spiral structure die head, reasonable flow channel, smooth inner and outer walls of the pipe.

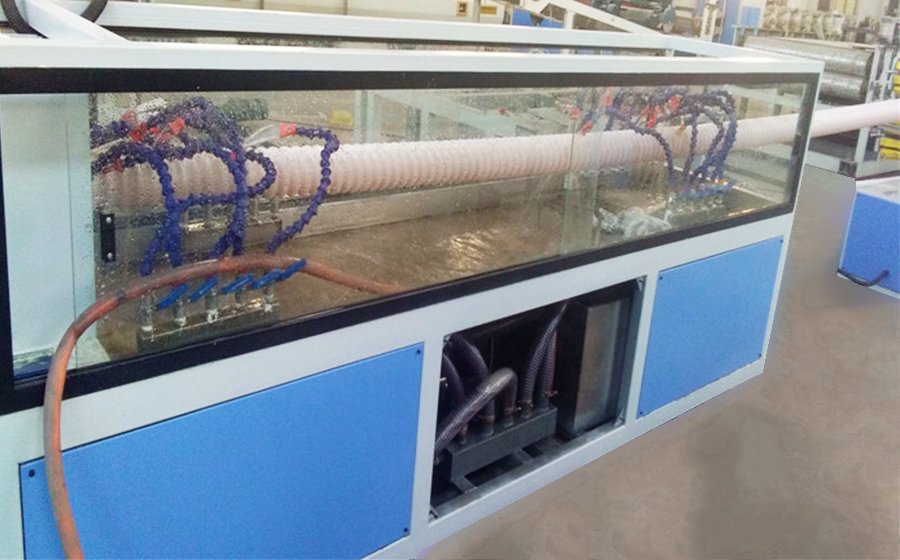

3. Specially designed sizing and cooling method: production range 50-200mm, production speed up to 0.8-1.5m/min.
4. High flexibility, suitable for co-extrusion of all polyolefin materials, and can extrude two-layer and three-layer spiral reinforced tubes of different specifications and uses.
5. The optimized copper spiral sizing sleeve inlet is equipped with a pre-cooling device and a strong vacuum device, which is suitable for high-speed extrusion of the pipe.
6. The longitudinal moving motor is adjusted, and three-dimensional adjustment can be achieved up, down, left, and right.
Main technical parameter:
Model | SJ-65B | SJ-75B | SJ-90B |
L/D ratio | 30:1 | 30:1 | 30:1 |
Pipe diameter | 20mm-100mm | 75mm-200mm | 75mm-200mm |
Production capacity(kg/h) | 20-80 | 50-100 | 50-100 |
Production speed(m/min) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 |
Total power(kw) | 32.7 | 50.2 | 50.2 |
Application:
During the production process, traction wire is placed into the carbon spiral tube, which can be bent and rolled up.
Each tube is long and has many advantages such as convenient construction, high strength and light weight. It is widely used in the fields of optical fiber cable jacket protection.
