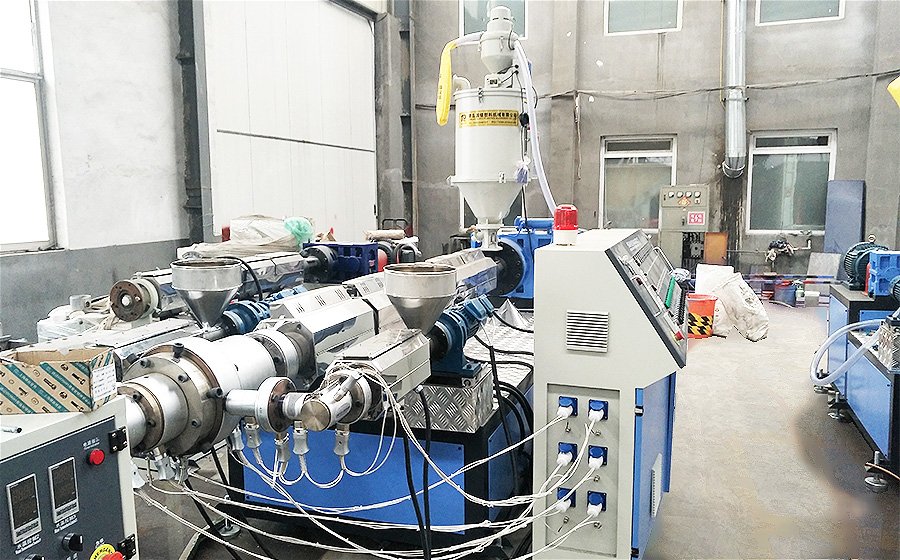

HDPE multi-layer co-extrusion pipe production line is a device used to manufacture special application pipes. Its structure can be AB, ABA, ABC and other multi-layer HDPE pipes, which can be lined with a high wear-resistant inner layer and used in various industrial and mining, sewage, chemical raw material transportation, etc.
Description of HDPE Co-extrusion Production Line:
1. Equipment composition:
Single screw extruder(2 sets or 3 sets)+Multilayer co-extrusion pipe die mould+Vacuum sizing water tank+Spray water tank+
2. Features of HDPE Pipe Machine:
1)The extruder adopts large L/D ratio screw and AC motor, to imporve the high output
2)The mold body adopts independent spiral mechanisms for each layer to ensure uniformity, keep the melt temperature stable under high output, and reduce the cooling length
3)The traction adopts servo control, with a wide speed adjustment range, ensuring stable production with high torque at low speed
4)Using chip-free cutting machine, the length is clear and accurate, and the incision is beautiful
5)A production data collection and analysis system can be selected to achieve transparent production management
Technical parameters:
Model | Pipe diameter(mm) | Max capacity(kg/h) | Production speed(m/min) | Multilayer |
63PE | 16-63 | 300 | 25 | 2-4 layers |
110PE | 20-110 | 300 | 14 | 2-4 layers |
160PE | 40-160 | 600 | 8 | 2-4 layers |
250PE | 50-250 | 600 | 6.5 | 2-4 layers |
450PE | 110-450 | 820 | 4.5 | 2-4 layers |
630PE | 160-630 | 1150 | 1.6 | 2-4 layers |
800PE | 280-800 | 1150 | 1 | 2-4 layers |
1000PE | 400-1000 | 1400 | 0.8 | 2-4 layers |
1200PE | 500-1200 | 1400 | 0.6 | 2-4 layers |
Application:
Multi-layer HDPE pipe can be lined with a highly abrasion resistant inner layer for moving materials such as mining slurry or pumping sands during dredging operations.
